Forging Square Stainless Steel 3mm 17 4ph Hot Rolled Forged Steel Shaft

1. Introduction

The deformation resistance of stainless steel at high temperature is relatively large, therefore, forging stainless steel needs to use a larger tonnage of equipment and wear resistant mold materials. The high temperature resistance of stainless steel is between nickel-based superalloy and general alloy structural steel, and the surface rises with the increase of the deformation degree, so too much deformation degree can not be used.

2. Chemical composition and mechanical Properties

3. Mechanical properties
Tensile strength σB (MPa) : 480℃ aging,≥1310; 550 ℃ ageing, p 1060; 580 ℃ ageing, p 1000; 620 ℃ ageing, p. 930
Conditional yield strength σ0.2 (MPa) : 480℃ aging,≥1180; 550 ℃ ageing, p 1000; 580 ℃ ageing, p 865; 620 ℃ ageing, p. 725
Elongation δ5 (%) : aging at 480℃,≥10; 550 ℃ ageing, 12 or higher; 580 ℃ ageing, 13 or higher; 620 ℃ ageing, 16 or higher
Section shrinkage ψ (%) : 480℃ aging,≥40; 550 ℃ ageing, 45 or higher; 580 ℃ ageing, 45 or higher; 620 ℃ ageing, 50 or more
Hardness: solid solution,≤363HB and ≤38HRC; Aging at 480℃,≥375HB and ≥40HRC; Aged at 550℃,≥331HB and ≥35HRC; Aging at 580℃,≥302HB and ≥31HRC; Aged at 620℃,≥277HB and ≥28HRC

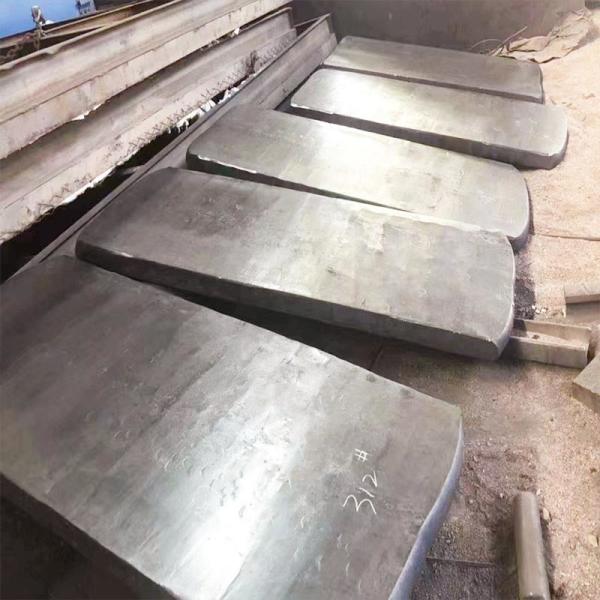

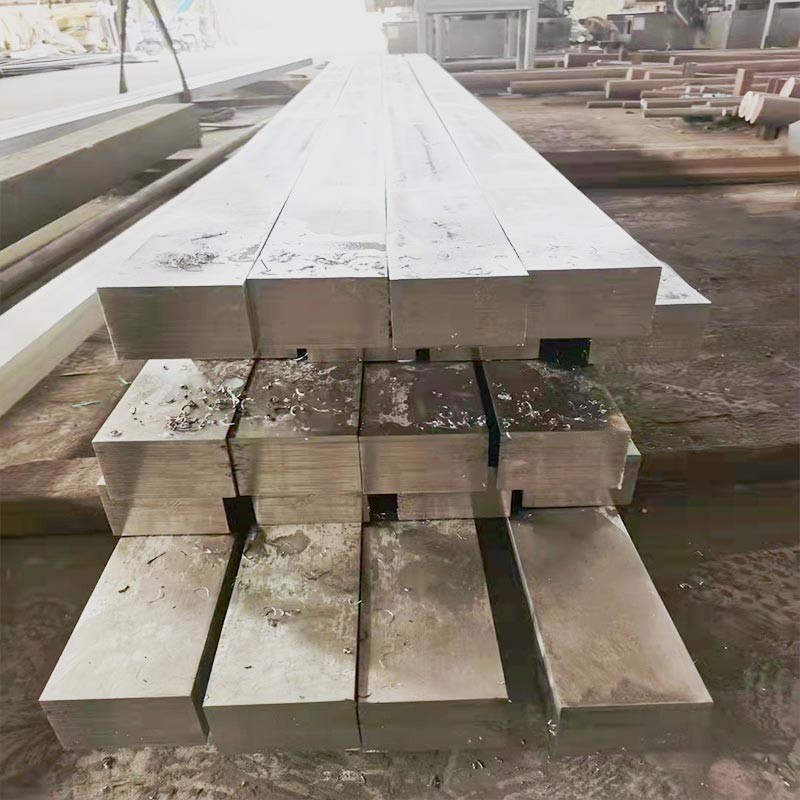

4. Product Show

Wuxi Chengjiu Metal Products Co., Ltd.

We are founded in March 2014 and located in Wuxi, Jiangsu Province near Taihu Lake. We are a comprehensive high-tech enterprise integrating R & D, production, sales and service.

We have areas of 21000 square meters, covering more than 30 acres. and We have more than 100 employees, including 13 senior technical managers and 3 senior engineers. We also have many advanced equipment, including: one broaching machine with an outer diameter of 1080, seven broaching machines of various models, 10 rolling mills, one gas generator and annealing furnace, one large-scale automatic solid solution annealing furnace, testing equipment, spectral instruments, wall thickness testing, CS analytical instruments, ultrasonic flaw detection, eddy current flaw detection, water pressure testing, crystal testing, etc.

We attach importance to technological innovation and brand building, and have three patents. Our products have passed ISO9001 and gb/t24001-2016idt iso14001:2015 standards. We have special equipment type test certificate and its number is tsx7100270200299.

Our main products: stainless steel hot rolled plate, stainless steel cold rolled plate, stainless steel cold rolled coil, stainless steel hot rolled coil, stainless steel pipe, stainless steel pipe fittings, stainless steel bar, stainless steel flat steel, stainless steel angle steel, stainless steel channel steel, stainless steel forgings.

Our main materials(stainless steel materials):

201 202 301 303 304 304L 321 316L 316Ti 317L 347H 309S 310S 2205 2507 17-4PH 15-5PH 410 420 430 ,etc.

Our products are widely used in petroleum, chemical industry, chemical fiber, medical equipment, smelting, aerospace, papermaking, food, shipbuilding, environmental protection, boilers, heat exchangers, pressure vessels, condensers, water conservancy, electricity and other industries.
