16mm Polished Stainless Angle 2507

Ask Lasest Price
Brand Name :	Chengjiu
Price :	bargaining
Payment Terms :	L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :	5000 tons/month
Delivery Time :	Within 15-30 workdays after receiving deposit or L/C

Add to Cart

Product Details
Company Profile

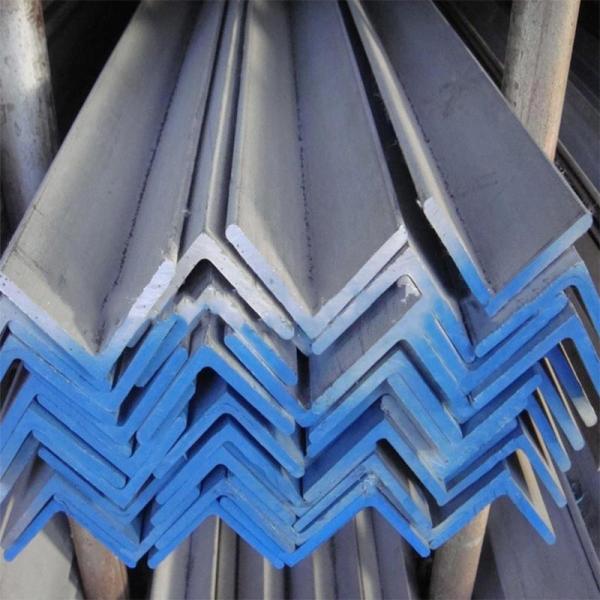

16mm Polished Stainless Angle 2507

304 Stainless Steel Angle Steel Equilateral Angle Steel

Best Quality Stainless Steel Polished Angle Straight Bar Dimensions 2 Inch

Stainless steel Angle steel can be composed of different stress components according to the different needs of the structure, but also can be used as a connection between components. Widely used in a variety of building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.

2.Chemical composition and mechanical

Chemical composition
Material	C	Si	Mn	Cr	Ni	S	P	N
304	≤0.08	≤1.00	≤2.00	≤18.0-20.0	≤8.0-10.5	≤0.030	≤0.035	≤0.1

Mechanical properties of 304 stainless steel Angle steel

Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205

Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520

304 stainless steel Angle steel mechanical properties elongation (%) ≥40

Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200

Stainless steel Angle steel specification list

Angle of the side	thickness (mm)
A×Bmm	4	5	6	7	8	9	10
20×20	0.894	1.13	1.38
25×25	1.13	1.45	1.77	2.06
30×30	1.37	1.77	2.17	2.53
35×35	1.61	2.09	2.57	3.01
40×40	1.85	2.41	2.97	3.49
45×45	2.12	2.76	3.4	4
50×50	2.36	3.07	3.79	4.46	5.13	5.76	6.42
60×60			4.58	5.42	6.24	7.03
63×63			5.03	5.95	6.84	7.71	8.6
70×70			5.42	6.42	7.39	8.34	9.31
75×75			5.82	6.89	7.95	8.97	10
80×80				7.37	8.5	9.61	10.7
90×90				8.33	9.65	11.9	12.2
100×100				9.28	10.8	12.2	13.6

3.Product show
